CISCO2851-HSEC/K9

Manufacturer Part#: Cisco CISCO2851-HSEC/K9

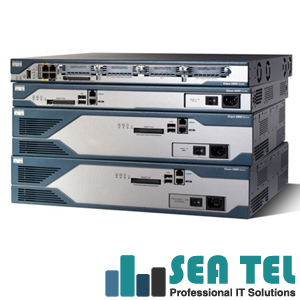

CISCO2851-HSEC/K9 Cisco 2800 Series Integrated Services Router

CISCO2851-HSEC/K9 - Integrated Services Router - 2 x 10/100/1000Base-T LAN, 2 x USB

Cisco 2851 provides significant additional value compared to prior generations of Cisco routers at similar price points by offering up to a fivefold performance improvement, up to a tenfold increase in security and voice performance, new embedded service options, and dramatically increased slot performance and density while maintaining support for most of the more than 90 existing modules that are available today for the Cisco 1700, Cisco 2600, and Cisco 3700 Series.

Cisco CISCO2851-HSEC/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2800
Product Name: 2851 Router with Enhanced Security Bundle
Product Type: Integrated Services Router

Cisco CISCO2851-HSEC/K9 Interfaces/Ports:
Number of Ports: 2
Gigabit Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100/1000Base-T 10/100/1000Base-T LAN
Interfaces/Ports: 1 x Auxiliary Management
Interfaces/Ports: 1 x Console Management
Interfaces/Ports: 2 x USB

Cisco CISCO2851-HSEC/K9 I/O Expansions:
Number of Expansion Slots: 11
Expansion Slots: (4 Total) Expansion Slot
Expansion Slots: (1 Total) EVM
Expansion Slots: (1 Total) NME
Expansion Slots: (3 Total) PVDM
Expansion Slots: (2 Total) AIM
Modules: 1 x AIM-VPN/SSL-2 VPN Encryption/Compression Module

Cisco CISCO2851-HSEC/K9 Management & Protocols
Management:
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Cisco CallManager Express (CME)
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Cisco CallManager Express (CME)

Protocols: ATM
Protocols: VoATM
Protocols: SNMP v3
Protocols: TCP/IP
Protocols: IPSec
Protocols: IPv6
Protocols: VoFR
Protocols: H.323
Protocols: MGCP
Protocols: SSH v2
Protocols: VoIP

Cisco CISCO2851-HSEC/K9 Memory:
Standard Memory: 256MB
Maximum Memory: 1GB

Cisco CISCO2851-HSEC/K9 Memory:
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco CISCO2851-HSEC/K9 Software:
Operating System:
Cisco 2800 IOS ADVANCED IP SERVICES
Cisco 2800 IOS ADVANCED IP SERVICES

Cisco CISCO2851-HSEC/K9 Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 2A @ 230V AC
Input Current: 3A @ 110V AC
Frequency: 50 Hz or 60 Hz

Cisco CISCO2851-HSEC/K9 Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Non-operating
Humidity: 5% to 95% Non-condensing Operating

Cisco CISCO2851-HSEC/K9 Physical Characteristics:
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Dimensions: 3.5 Height x 17.25 Width x 16.4 Depth
