CISCO2851-CCME/K9

Manufacturer Part#: Cisco CISCO2851-CCME/K9

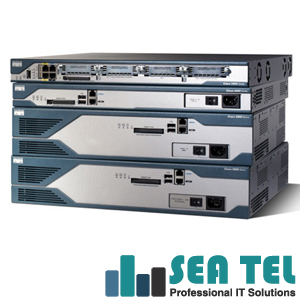

CISCO2851-CCME/K9 Cisco 2800 Series Integrated Services Router

CISCO2851-CCME/K9 - Integrated Services Router - 2 x 10/100/1000Base-T LAN, 2 x USB

Cisco CISCO2851-CCME/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2800
Product Name: 2851 Router with Voice Bundle
Product Type: Integrated Services Router

Cisco CISCO2851-CCME/K9 Interfaces/Ports:
Number of Ports: 2
Gigabit Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100/1000Base-T 10/100/1000Base-T LAN
Interfaces/Ports: 2 x USB

Cisco CISCO2851-CCME/K9 Interfaces/Ports:
Interfaces/Ports: 1 x Console Management
Interfaces/Ports: 1 x Auxiliary Management

Cisco CISCO2851-CCME/K9 I/O Expansions:
Number of Expansion Slots: 11
Expansion Slots: (4 Total) Expansion Slot
Expansion Slots: (1 Total) EVM
Expansion Slots: (2 Total) AIM
Expansion Slots: (3 Total) PVDM
Expansion Slots: (1 Total) NME
Modules: 1 x PVDM2-48 Packet Voice/Fax DSP Module

Cisco CISCO2851-CCME/K9 Management & Protocols:
Management:
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Cisco CallManager Express (CME)
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Cisco CallManager Express (CME)

Protocols: RTP
Protocols: TCP/IP
Protocols: SNMP
Protocols: SSH v1
Protocols: ATM
Protocols: VoIP
Protocols: MGCP
Protocols: H.323
Protocols: VoATM
Protocols: VoFR

Cisco CISCO2851-CCME/K9 Memory:
Standard Memory: 256MB
Maximum Memory: 1GB
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco CISCO2851-CCME/K9 Software:
Operating System:
Cisco 2800 IOS SP SERVICES
Cisco 2800 IOS SP SERVICES

Cisco CISCO2851-CCME/K9 Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 2A @ 230V AC
Input Current: 3A @ 110V AC
Frequency: 50 Hz or 60 Hz

Cisco CISCO2851-CCME/K9 Environmental Conditions:
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Non-operating
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Operating

Cisco CISCO2851-CCME/K9 Physical Characteristics:
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Dimensions: 3.5 Height x 17.25 Width x 16.4 Depth
