CISCO2811-ADSL/K9

Manufacturer Part#: Cisco CISCO2811-ADSL/K9

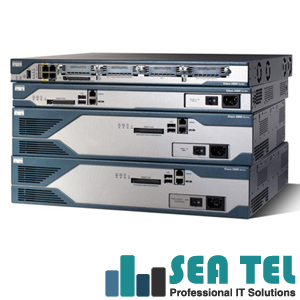

CISCO2811-ADSL/K9 Cisco 2800 Series Integrated Services Router

CISCO2811-ADSL/K9 - Cisco 2811 provides significant additional value compared to prior generations of Cisco routers at similar price points by offering up to a fivefold performance improvement, up to a tenfold increase in security and voice performance, new embedded service options, and dramatically increased slot performance and density while maintaining support for most of the more than 90 existing modules that are available today for the Cisco 1700, Cisco 2600, and Cisco 3700 Series.

Cisco CISCO2811-ADSL/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2800
Product Name: 2811 Router with ADSL over POTS Bundle
Product Type: Integrated Services Router

Cisco CISCO2811-ADSL/K9 Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x Auxiliary Management
Interfaces/Ports: 1 x Console Management
Interfaces/Ports: 2 x USB

Cisco CISCO2811-ADSL/K9 I/O Expansions:
Number of Expansion Slots: 9
Expansion Slots: (4 Total) Expansion Slot
Expansion Slots: (1 Total) NME
Expansion Slots: (2 Total) AIM
Expansion Slots: (2 Total) PVDM
Modules: 1 x WIC-1ADSL ADSLoPOTS WIC

Cisco CISCO2811-ADSL/K9 Management & Protocols:
Management:
Cisco Router and Security Device Manager (SDM)
Command-Line Interface (CLI)
CiscoWorks
Cisco AutoInstall
Simple Network Management Protocol (SNMP)
Cisco Call Manager Express (CME)
Cisco Router and Security Device Manager (SDM)
Command-Line Interface (CLI)
CiscoWorks
Cisco AutoInstall
Simple Network Management Protocol (SNMP)
Cisco Call Manager Express (CME)

Cisco CISCO2811-ADSL/K9 Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited

Cisco CISCO2811-ADSL/K9 Management & Protocols:
Protocols: H.323
Protocols: VoFR

Cisco CISCO2811-ADSL/K9 Memory:
Standard Memory: 256MB
Maximum Memory: 760MB
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco CISCO2811-ADSL/K9 Software:
Operating System:
Cisco 2800 IOS SP SERVICES
Cisco 2800 IOS SP SERVICES

Cisco CISCO2811-ADSL/K9 Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1A @ 230V AC
Input Current: 2A @ 110V AC
Frequency: 50 Hz or 60 Hz

Cisco CISCO2811-ADSL/K9 Environmental Conditions:
Temperature: -4 degrees F (-20.0 degrees C) to 149 degrees F (65.0 degrees C) Non-operating
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 5% to 95% Non-condensing Operating

Cisco CISCO2811-ADSL/K9 Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Wall-mountable
Dimensions: 1.75 Height x 17.25 Width x 16.4 Depth
