CISCO2801-V3PN/K9

Manufacturer Part#: Cisco CISCO2801-V3PN/K9

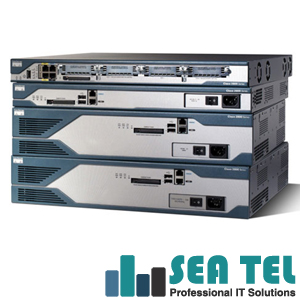

CISCO2801-V3PN/K9 Cisco 2800 Series Integrated Services Router

CISCO2801-V3PN/K9 - Cisco 2801 provides significant additional value compared to prior generations of Cisco routers at similar price points by offering up to a fivefold performance improvement, up to a tenfold increase in security and voice performance, new embedded service options, and dramatically increased slot performance and density while maintaining support for most of the more than 90 existing modules that are available today for the Cisco 1700, Cisco 2600, and Cisco 3700 Series.

Cisco CISCO2801-V3PN/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2800
Product Name: 2801 Router with V3PN Bundle
Product Type: Integrated Services Router

Cisco CISCO2801-V3PN/K9 Interfaces/Ports
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 1 x USB
Interfaces/Ports: 1 x Auxiliary Management
Interfaces/Ports: 1 x Console Management

Cisco CISCO2801-V3PN/K9 I/O Expansions
Number of Expansion Slots: 8
Expansion Slots: (4 Total) Expansion Slot
Expansion Slots: (2 Total) PVDM
Expansion Slots: (2 Total) AIM
Modules: 1 x AIM-VPN/EPII-PLUS VPN Encryption/Compression Module
Modules: 1 x PVDM2-8 Packet Voice/Fax DSP Module

Cisco CISCO2801-V3PN/K9 Management & Protocols
Management:
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)
Cisco Router and Security Device Manager (SDM)
Simple Network Management Protocol (SNMP)

Protocols: TCP/IP
Protocols: SNMP v3
Protocols: IPSec
Protocols: SSH v2

Cisco CISCO2801-V3PN/K9 Memory
Standard Memory: 128MB
Maximum Memory: 384MB
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco CISCO2801-V3PN/K9 Software:
Operating System:
Cisco 2801 IOS ADVANCED IP SERVICES
Cisco 2801 IOS ADVANCED IP SERVICES

Cisco CISCO2801-V3PN/K9 Power Description
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 1A @ 230V AC
Input Current: 2A @ 110V AC
Frequency: 50 Hz or 60 Hz

Cisco CISCO2801-V3PN/K9 Environmental Conditions
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 85% Non-condensing Operating

Cisco CISCO2801-V3PN/K9 Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Desktop
Dimensions: 1.72 Height x 17.5 Width x 16.5 Depth
