CISCO2611-DC

Manufacturer Part#: Cisco  CISCO2611-DC

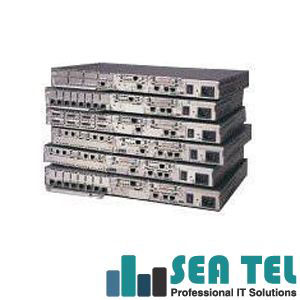

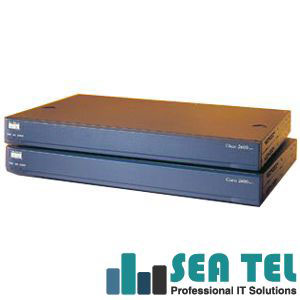

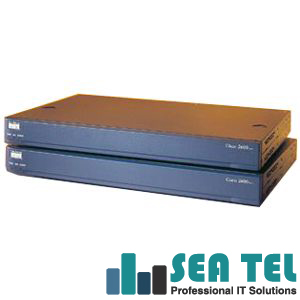

CISCO2611-DC Cisco 2600 Series Multiservice Router Platform

CISCO2611-DC - Access Router - 2 x 10Base-T LAN

Cisco 2600 Series Modular Routers extends the versatility, integration, and power to corporate branch offices,by providing more performance and increased density for multiple applications. Companies can consolidate the functions of multiple separate devices into a single, compact package that can be managed remotely. Because the Cisco 2600 Series is modular, interface configurations are easily customized to accommodate a wide variety of network applications, such as branch office data access, integrated switching, multiservice voice/data integration, dial access services, VPN access and firewall protection, inter-VLAN routing and serial device concentration. The Cisco 2600 Series is ideal for sites and solutions requiring the highest levels of integration at the edge for Branch Office IP Telephony, voice gateway, and integrated flexible routing with low-density switching solutions.

Cisco CISCO2611-DC Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 158 degrees F (70.0 degrees C) Storage
Humidity: 5% to 95% Non-condensing Operating
Altitude: 6500 ft Operating

Cisco CISCO2611-DC Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Wall-mountable
Dimensions: 1.69 Height x 17.5 Width x 11.8 Depth
Weight: 10.25 lb
Shipping Weight: 18.5 lb

Cisco CISCO2611-DC General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2600
Product Name: 2611 Access Router
Product Type: Access Router

Cisco CISCO2611-DC Interfaces/Ports:
Number of Ports: 2
Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10Base-T 10Base-T LAN
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 Auxiliary Management

Cisco CISCO2611-DC Media & Performance:
Connectivity Media: Twisted Pair 10Base-T

Cisco CISCO2611-DC I/O Expansions:
Number of Expansion Slots: 4
Expansion Slots: (1 Total) AIM
Expansion Slots: (2 Total) WIC
Expansion Slots: (1 Total) Network Module
Modules: Not Included

Cisco CISCO2611-DC Management & Protocols:
Management:
•Remote management through Router Aux port
•Local management through the Router Console port

Cisco CISCO2611-DC Processor & Chipset:
Processor: Motorola PowerQUICC MPC860 40MHz

Cisco CISCO2611-DC Memory:
Standard Memory: 32MB
Maximum Memory: 64MB
Memory Technology: DRAM
Flash Memory: 8 MB

Cisco CISCO2611-DC Controls/Indicators:
Status Indicators:
•Power
•RPS status
•Network activity
•Interface status

Cisco CISCO2611-DC Software:
Operating System:
Cisco 2600 Series IOS IP
Cisco 2600 Series IOS IP

Cisco CISCO2611-DC Power Description:
Input Voltage Range: -38V DC to -75V DC
Input Current: 2A
Power Consumption: 75W Maximum
Power Source: Power Supply

Cisco CISCO2611-DC Environmental Conditions:
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
