CISCO1812-J/K9

Manufacturer Part#: Cisco  CISCO1812-J/K9

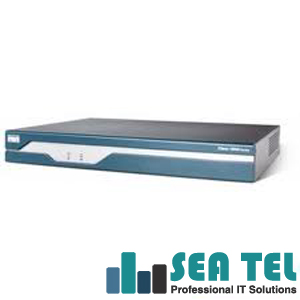

CISCO1812-J/K9 Cisco 1800 Series Router

CISCO1812-J/K9 - Cisco 1812 router provide high-speed broadband or Ethernet access through two 10/100BASE-T Fast Ethernet WAN ports and also provide integrated WAN backup through ISDN S/T BRI interface. The Cisco 1812 router is focused on Ethernet access and are designed to be offered as customer premises equipment (CPE) in Metro Ethernet deployments. The eight-port switch is sufficient for connecting multiple devices and the optional PoE capability can supply power to IP telephones or other devices.

Cisco CISCO1812-J/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1800
Product Model: 1812
Product Name: 1812 Integrated Services Router
Product Type: Integrated Services Router

Cisco CISCO1812-J/K9 Interfaces/Ports:
Number of Ports: 11
Fast Ethernet Port: Yes
ISDN Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX 10/100Base-TX WAN
Interfaces/Ports: 8 x RJ-45 10/100Base-TX 10/100Base-TX LAN
Interfaces/Ports: 2 x USB
Interfaces/Ports: 1 x ISDN BRI (S/T) ISDN BRI (S/T) WAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management

Cisco CISCO1812-J/K9 Media & Performance:
Connectivity Media: Category 5 UTP 10/100Base-TX

Cisco CISCO1812-J/K9 I/O Expansions:
Number of Expansion Slots: 2
Expansion Slots: (1 Total) CompactFlash (CF) Card
Expansion Slots: (1 Total) DIMM

Cisco CISCO1812-J/K9 Management & Protocols:
Management:
•Remote management
•VLAN
•Web-based management
•Quality of service (QoS)
•Simple Network Management Protocol (SNMP)
•CiscoWorks VPN/Security Management Solution (VMS)

Cisco CISCO1812-J/K9 Memory:
Standard Memory: 128MB
Maximum Memory: 384MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO1812-J/K9 Software:
Operating System:
Cisco IOS 12.4T

Cisco CISCO1812-J/K9 Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Power Source: Power Supply

Cisco CISCO1812-J/K9 Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Wall-mountable
Form Factor: Desktop
Dimensions: 1.89 Height x 12.74 Width x 9.7 Depth
Dimensions: 1.75 Height x 12.74 Width x 9.7 Depth
Weight: 6.1 lb
