CISCO1701-K9

Manufacturer Part#: CISCO1701-K9

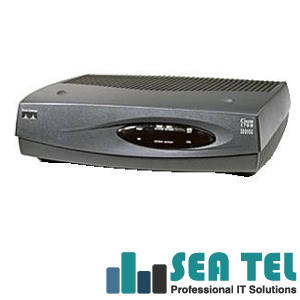

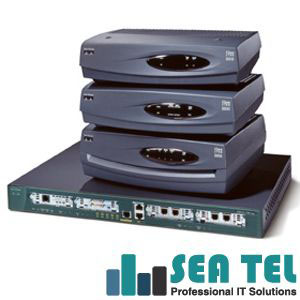

CISCO1701-K9 1700 Series Modular Access Router

CISCO1701-K9 - Broadband Router - 1 x ADSL WAN, 1 x ISDN BRI (S/T) WAN, 1 x 10/100Base-TX LAN

Cisco 1701 ADSL Security Access Router provides secure and reliable Internet and corporate network connectivity to enterprise small branch offices and small and medium-sized businesses. It offers business-class ADSL over basic telephone service (Plain Old Telephone Service [POTS]) with a redundant WAN link to help ensure high availability of critical business applications. The Cisco 1701 router also supports integrated security services that help ensure protection of the network and secure data traveling over the Internet. Additionally, advanced quality-of-service (QoS) features prioritize mission-critical data traffic.

Cisco CISCO1701-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 1700
Product Name: 1701 Broadband Router
Product Type: Broadband Router

Cisco CISCO1701-K9 Interfaces/Ports:
Number of Ports: 3
Fast Ethernet Port: Yes
ISDN Port: Yes
DSL Port: Yes
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x ISDN BRI (S/T) WAN
Interfaces/Ports: 1 x ADSL WAN

Cisco CISCO1701-K9 Media & Performance:
Connectivity Media: Category 5 UTP/STP 10/100Base-TX
Connectivity Media: Category 4 UTP 10Base-T
Connectivity Media: Category 3 UTP 10Base-T

Cisco CISCO1701-K9 I/O Expansions:
Number of Expansion Slots: 3
Expansion Slots: (1 Total) VPN Module
Expansion Slots: (2 Total) Expansion Slot
Modules: 1 x WIC-1ADSL ADSL WIC
Modules: 1 x WIC-1B-S/T ISDN WIC

Cisco CISCO1701-K9 Management & Protocols:
Management:
Router can be managed over a network using Simple Network Management Protocol (SNMP).

Protocols: TCP/IP
Protocols: OSPF
Protocols: NLSP
Protocols: RSVP
Protocols: IPSec
Protocols: NAT

Cisco CISCO1701-K9 Processor & Chipset:
Processor: MPC860P

Cisco CISCO1701-K9 Memory:
Standard Memory: 96MB
Maximum Memory: 128MB
Memory Technology: DRAM
Flash Memory: 32 MB

Cisco CISCO1701-K9 Controls/Indicators:
Status Indicators: Back Pannel LEDs:
•WIC1 OK LED
•MOD OK LED
•WIC0 OK LED
•FDX (Ethernet LED)
•100 (Ethernet LED)
•LINK (Ethernet LED)

CISCO1701-K9 Front Pannel LEDs:
•PWR
•OK
•ETH (ACT)
•ETH (COL)
•WIC0 (ACT/CH0)
•WIC0 (ACT/CH1)
•WIC1 (ACT/CH0)
•WIC1 (ACT/CH1)

CISCO1701-K9 Controls:
•Power switch:

Cisco CISCO1701-K9 Software:
Operating System:
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES
Cisco 1700 IOS IP/ADSL/FW/IDS PLUS IPSEC 3DES

Cisco CISCO1701-K9 Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Input Current: 0.5A
Frequency: 50 Hz or 60 Hz
Power Consumption: 20W Maximum
Power Source: AC Adapter

Cisco CISCO1701-K9 Environmental Conditions:
Temperature: -40 degrees F (-40.0 degrees C) to 149 degrees F (65.0 degrees C) Storage
Temperature: 32 degrees F (0.0 degrees C) to 104 degrees F (40.0 degrees C) Operating
Humidity: 10% to 85% Non-condensing Relative Humidity Operating
Humidity: 5% to 95% Non-condensing Relative Humidity Storage

Cisco CISCO1701-K9 Physical Characteristics:
Form Factor: Wall-mountable
Form Factor: Stackable
Form Factor: Desktop
Dimensions: 3.1 Height x 11.2 Width x 8.7 Depth
Shipping Dimensions: 8.25 Height x 13.25 Width x 11 Depth
Weight: 2.9 lb
Shipping Weight: 6.59 lb
