C9300-24T-E
C9300-24T-E C9300-24T-E

C9300-24T-E

Product ID : C9300-24T-E
Product Tags : Catalyst 9300 Series
Product Description
C9300-24T-E
Catalyst 9300 24-port data only, Network Essentials

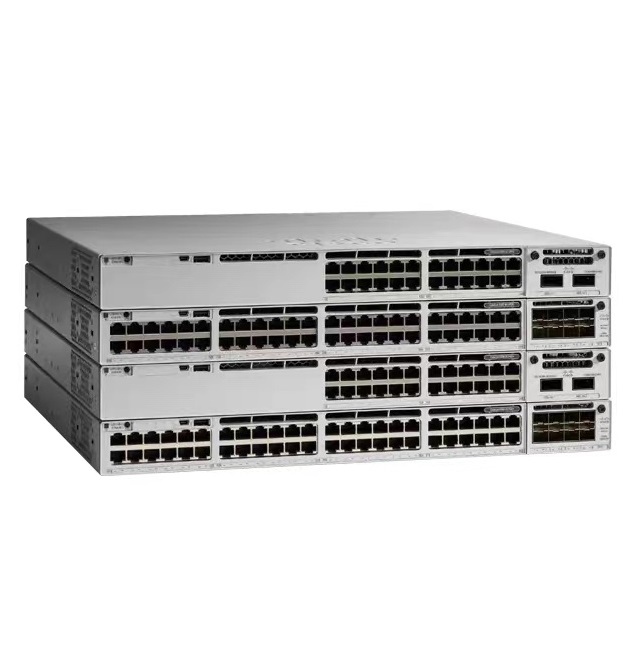

The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform

built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely

deployed switching platform. Catalyst 9300 Series switches form the foundational building block for

Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 480 Gbps, they

are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture.

The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2.

It sets new maximums for network scale. These switches are also ready for the future, with an x86

CPU architecture and more memory, enabling them to host containers and run third-party applications

and scripts natively within the switch.



The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment

with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient

architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture

features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco

UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified

Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also

allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with

programmability offers advanced security capabilities and Internet of Things (IoT) convergence.



C9300-24T-E Specification

Part Number

C9300-24T-E

Product Description

Catalyst 9300 24-port data only, Network Essentials

Total 10/100/1000 or Multigigabit copper ports

24

Default AC power supply

350W AC

Available PoE power

--

Cisco StackWise-480

Yes

Cisco StackPower

Yes

Default power supply

PWR-C1-350WAC

Switching capacity

208 Gbps on 24-port Gigabit Ethernet model

Stacking bandwidth

480 Gbps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

32,000 (24,000 direct routes and 8000 indirect routes)

IPv4 routing entries

32,000

IPv6 routing entries

16,000

Multicast routing scale

8000

QoS scale entries

5120

ACL scale entries

5120

Packet buffer per SKU

16 MB buffer for 24- or 48-port Gigabit Ethernet models

FNF entries

64,000 flow on 24- and 48-port Gigabit Ethernet models

DRAM

8 GB

Flash

16 GB

VLAN IDs

4000

Total Switched Virtual Interfaces (SVIs)

2000

Jumbo frames

9198 bytes

Total routed ports per 9300 Series stack

208

Wireless bandwidth per switch

Up to 48 Gbps on 24-port Gigabit Ethernet model

Forwarding rate

154.76 Mpps

Dimensions (H x W x D)

1.73 x 17.5 x 17.5 Inches

Weight

16.33 Pounds

Mean time between failures (hours)

299,000

Safety certifications

●  UL 60950-1

●  CAN/CSA-C222.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950.1

●  IEEE 802.3

Electromagnetic emissions certifications

●  47 CFR Part 15

●  CISPR22 Class A

●  EN 300 386 V1.6.1

●  EN 55022 Class A

●  EN 55032 Class A

●  CISPR 32 Class A

●  EN61000-3-2

●  EN61000-3-3

●  ICES-003 Class A

●  TCVN 7189 Class A

●  V-3 Class A

●  CISPR24

●  EN 300 386

●  EN55024

●  TCVN 7317

Environmental

Reduction of Hazardous Substances (ROHS) 5
