C9300-24S-A
C9300-24S-A

C9300-24S-A

Product ID : C9300-24S-A
Product Tags : Catalyst 9300 Series
Product Description

C9300-24S-A

Catalyst 9300  24 GE SFP Ports, modular uplink Switch

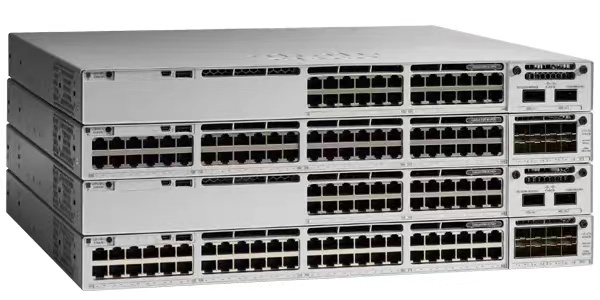

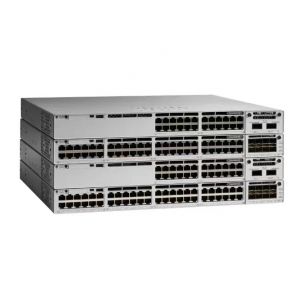

Cisco C9300-24S-A
Cisco C9300-24S-A switch is part of Catalyst 9300 series, Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. At up to 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The C9300-24S Modular Uplink Switch utilizes an optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. This C9300-24S is also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch


C9300-24S-A Specification

Product Code

C9300-24S-A

Product Description

Catalyst 9300 24 GE SFP Ports, modular uplink Switch

Total 10/100/1000 or Multigigabit copper ports

24x 1G SFP

Uplink Configuration

Modular Uplinks

Default AC power supply

715W AC

Available PoE power

N/A

Dimensions (H x W x D)

1.73 x 17.5 x 17.7 Inches

Cisco StackWise-480

Yes

Cisco StackPower

Yes

Default power supply

PWR-C1-715WAC-P/2

Switching capacity

208 Gbps

Stacking bandwidth

688 Gbps

Forwarding rate

154.76 Mpps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

32,000 (24,000 direct routes and 8000 indirect routes)

IPv4 routing entries

32,000

IPv6 routing entries

16,000

Multicast routing scale

8000

QoS scale entries

5120

ACL scale entries

5120

Packet buffer per SKU

16 MB buffer for 24- or 48-port Gigabit Ethernet modelst

32 MB buffer for 24 and 48-port Multigigabit

FNF entries

64,000 flow on 24- and 48-port Gigabit Ethernet models

128,000 flows on 24-port Multigigabit

DRAM

8 GB

Flash

16 GB

VLAN IDs

4094

Total Switched Virtual Interfaces (SVIs)

1000

Jumbo frames

9198 bytes

Total routed ports Catalyst per 9300 Series stack

448

Wireless bandwidth per switch

Up to 96 Gbps on 48-port Gigabit Ethernet model

Mean time between failures – MTBF (hours)

284,130

Safety certifications





•UL 60950-1

•CAN/CSA-C222.2 No. 60950-1

•EN 60950-1

•IEC 60950-1

•AS/NZS 60950.1

•IEEE 802.3
