Product Description
C9200L-48P-4G-E
Catalyst 9200L 48-port PoE+, 4 x 1G, Network Essentials

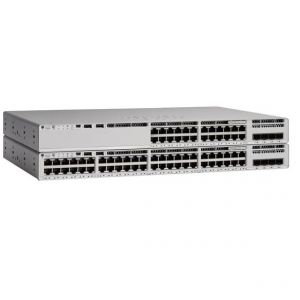

C9200L-48P-4G-E Overview
C9200L-48P-4G-E is the Catalyst 9200L 48 ports full POE+ 4x1G uplink Switch, with Network Essentials software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified
The Cisco Catalyst C9200L-48P-4G-E is a 48-port switch designed for small to medium-sized enterprise-level networking.
Physical Specifications:
Dimensions: 1.73 x 17.5 x 17.5 inches (4.4 x 44.5 x 44.5 cm)
Weight: 13.23 lbs (6.01 kg)
Performance Specifications:
Switching capacity: 104 Gbps
Forwarding rate: 77.38 Mpps
Buffer size: 16 MB
VLAN IDs: 4,096
MAC address table size: 32,000
Maximum transmission unit (MTU): Up to 9198 bytes
Power Specifications:
Power supply: 715WAC or 1100WAC
Maximum power consumption: 384W
AC input voltage: 100 to 240VAC
AC input frequency: 50 to 60 Hz
Environmental Specifications:
Operating temperature: 23 to 113°F (-5 to 45°C)
Storage temperature: -40 to 158°F (-40 to 70°C)
Operating humidity: 5 to 90% non-condensing
Storage humidity: 5 to 95% non-condensing
Operating altitude: Up to 10,000 ft (3048 m)
Connectivity Specifications:
Interfaces: 48 x 10/100/1000 Ethernet ports
Uplink interfaces: 4 x 1G SFP
Management interfaces: 1 x console port, 1 x USB mini-B port, 1 x USB Type-A port
Software Specifications:
Switching software: Cisco IOS XE
Layer 2 switching protocols: VLAN, Spanning Tree Protocol (STP), Rapid STP (RSTP), Multiple STP (MSTP)
Layer 3 routing protocols: Routing Information Protocol (RIP), Open Shortest Path First (OSPF), Border Gateway Protocol (BGP), Intermediate System-to-Intermediate System (IS-IS)
Security features: 802.1X, ACLs, DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard, Port Security, Private VLAN, MACsec
Quality of Service (QoS) features: Class of Service (CoS), Differentiated Services Code Point (DSCP), Weighted Random Early Detection (WRED), Trust Boundary, Auto-QoS
Additional Specifications:
Stackable: Yes, up to 8 switches
Software-defined networking (SDN) support: Yes, with Cisco DNA Center
Network management: SNMP, Cisco Prime Infrastructure, Cisco DNA Center, Cisco Network Assistant
PoE/PoE+ Support: Yes, up to 740W of PoE power budget
4G LTE module support: Yes, for cellular backup connectivity.
The Cisco Catalyst C9200L-48P-4G-E is a reliable and high-performance switch that offers advanced security features and improved network efficiency, making it an ideal choice for small to medium-sized enterprise-level networking. It also supports PoE/PoE+ and 4G LTE module, providing greater flexibility in deployment scenarios.
| C9200L-24P-4G-E | Catalyst 9200L 24-port PoE+, 4 x 1G, Network Essentials |
| C9200L-24P-4X-E | Catalyst 9200L 24-port PoE+, 4 x 10G, Network Essentials |
| C9200L-24T-4G-E | Catalyst 9200L 24-port data, 4 x 1G, Network Essentials |
| C9200L-24T-4X-E | Catalyst 9200L 24-port data, 4 x 10G ,Network Essentials |
| C9200L-48P-4G-E | Catalyst 9200L 48-port PoE+, 4 x 1G, Network Essentials |
| C9200L-48P-4X-E | Catalyst 9200L 48-port PoE+, 4 x 10G, Network Essentials |
| C9200L-48T-4G-E | Catalyst 9200L 48-port data, 4 x 1G, Network Essentials |
| C9200L-48T-4X-E | Catalyst 9200L 48-port data, 4 x 10G ,Network Essentials |
| C9200L-DNA-E-24-3Y | C9200L Cisco DNA Essentials, 24-port, 3 Year Term license |
| C9200L-DNA-E-24-5Y | C9200L Cisco DNA Essentials, 24-port, 5 Year Term license |
| C9200L-DNA-E-48-3Y | C9200L Cisco DNA Essentials, 48-port, 3 Year Term license |
| C9200L-DNA-E-48-5Y | C9200L Cisco DNA Essentials, 48-port, 5 Year Term license |
| C9200L-STACK-KIT | Cisco Catalyst 9200L Stack Module |
| C9200L-STACK-KIT= | Cisco Catalyst 9200L Stack Module |
