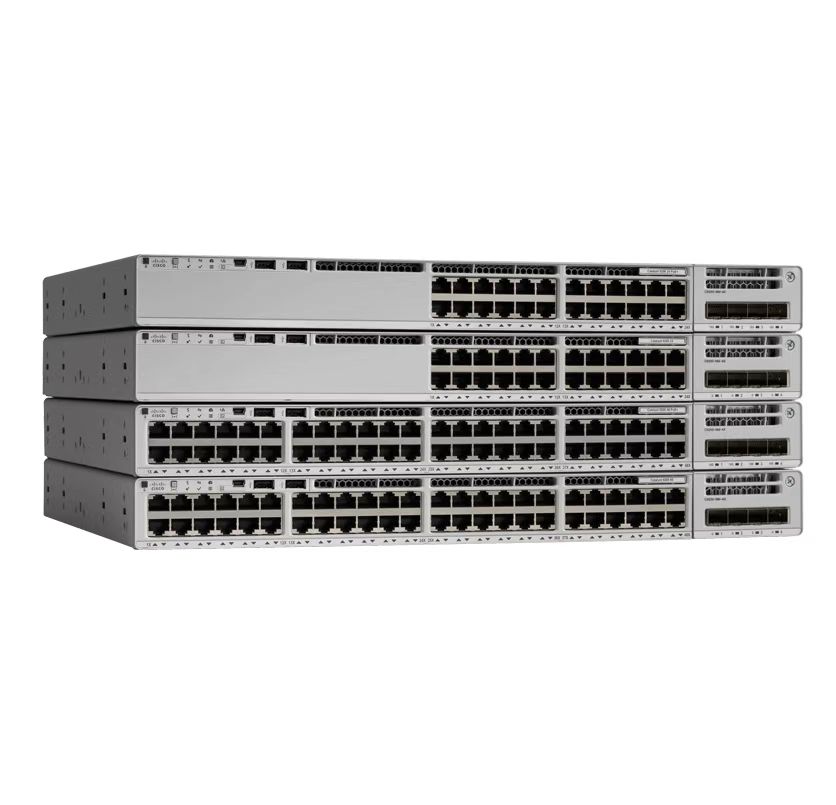

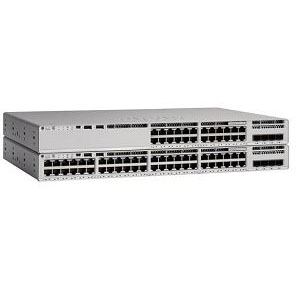

C9200L-24P-4G-A
C9200L-24P-4G-A

C9200L-24P-4G-A

Product ID : C9200L-24P-4G-A
Product Tags : Catalyst 9200 Series
Product Description

 C9200L-24P-4G-A

Catalyst 9200L 24-port PoE+, 4 x 1G, Network Advantage

C9200L-24P-4G-A is the Catalyst 9200L 24 ports full PoE+ 4x1G uplink Switch, with Network

Advantage software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based

networking and Catalyst 9000 hardware and software innovation to a broader set of deployments.

With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is

secure, always on, and IT simplified.



As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series

switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging

intelligence, automation and human expertise that no other vendor can deliver regardless of where

you are in the intent-based networking journey.



Catalyst 9200 Series switches provide security features that protect the integrity of the hardware

as well as the software and all data that flows through the switch. It provides resiliency that keeps

your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and

programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you

need now with investment protection on future innovations.



With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular

uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s

unparalleled solution with differentiated resiliency and progressive architecture for cost-effective

branch-office access.



C9200L-24P-4G-A Specification

Downlinks total 10/100/1000 or PoE+ copper ports

24 ports full PoE+

Uplink configuration

4x 1G fixed uplinks

Default primary AC power supply

PWR-C5-600WAC

Fans

Fixed redundant

Software

Network Advantage

Chassis Dimensions

1.73 x 17.5 x 11.3 in

4.4 x 44.5 x 28.8 cm

Weight

4.35 Kg

Virtual Networks

1

Stacking bandwidth

80 Gbps

Total number of MAC addresses

16,000

Total number of IPv4 routes (ARP plus learned routes)

11,000 (8,000 direct routes and 3,000 indirect routes)

IPv4 routing entries

3,000

IPv6 routing entries

1,500

Multicast routing scale

1,000

QoS scale entries

1,000

ACL scale entries

1,500

Packet buffer per SKU

6 MB buffers for 24- or 48-port Gigabit Ethernet models

Flexible NetFlow (FNF) entries

16,000 flows on 24- and 48-port Gigabit Ethernet models

DRAM

2 GB

Flash

4 GB

VLAN IDs

1024

Total Switched Virtual Interfaces (SVIs)

512

Jumbo frames

9198 bytes

Wireless bandwidth per switch

N/A

Switching capacity

56 Gbps

Forwarding rate

83.33 Mpps

Mean time between failures (hours)

392,210


C9200L-24P-4G-A Catalyst 9200L 24-port PoE+, 4 x 1G, Network Advantage
C9200L-24P-4G-CA C9200L 24-port PoE+, 4x1G, Network Advantage, China ONLY
C9200L-24P-4G-CE C9200L 24-port PoE+, 4x1G, Network Essentials, China ONLY
C9200L-24P-4X-A Catalyst 9200L 24-port PoE+, 4 x 10G, Network Advantage
C9200L-24P-4X-CA C9200L 24-port PoE+, 4x10G, Network Advantage, China ONLY
C9200L-24P-4X-CE C9200L 24-port PoE+, 4x10G, Network Essentials, China ONLY
C9200L-24PXG-2Y-A C9200L 24-port 8xmGig, 16x1G, 2x25G, PoE+, Network Advantage
C9200L-24PXG-2Y-E C9200L 24-p 8xmGig, 16x1G, 2x25G, PoE+, Network Essentials
C9200L-24PXG-4X-A C9200L 24-port 8xmGig, 16x1G, 4x10G, PoE+, Network Advantage
C9200L-24PXG-4X-E C9200L 24-p 8xmGig, 16x1G, 4x10G, PoE+, Network Essentials
C9200L-24T-4G-A Catalyst 9200 24-port data only, 4 x 1G, Network Advantage
C9200L-24T-4G-CA C9200 24-port data, 4x1G, Network Advantage, China ONLY
C9200L-24T-4G-CE C9200L 24-port data, 4x1G, Network Essentials, China ONLY
C9200L-24T-4X-A Catalyst 9200L 24-port data only, 4 x 10G ,Network Advantage
C9200L-24T-4X-CA C9200L 24-port data, 4x10G ,Network Advantage, China ONLY
C9200L-24T-4X-CE C9200L 24-port data, 4x10G ,Network Essentials, China ONLY
C9200L-48P-4G-A Catalyst 9200L 48-port PoE+, 4 x 1G, Network Advantage
C9200L-48P-4G-CA C9200L 48-port PoE+, 4x1G, Network Advantage, China ONLY
C9200L-48P-4G-CE C9200L 48-port PoE+, 4x1G, Network Essentials, China ONLY
C9200L-48P-4X-A Catalyst 9200L 48-port PoE+, 4 x 10G, Network Advantage
C9200L-48P-4X-CA C9200L 48-port PoE+, 4x10G, Network Advantage, China ONLY
C9200L-48P-4X-CE C9200L 48-port PoE+, 4x10G, Network Essentials, China ONLY
C9200L-48PL-4G-A Catalyst 9200L 48-port Partial PoE+, 4 x 1G, NW Advantage
C9200L-48PL-4G-E Catalyst 9200L 48-port Partial PoE+, 4 x 1G, NW Essentials
C9200L-48PL-4X-A Catalyst 9200L 48-port Partial PoE+, 4 x 10G, NW Advantage
C9200L-48PL-4X-E Catalyst 9200L 48-port  Partial PoE+, 4 x 10G, NW Essentials
C9200L-48PXG-2Y-A C9200L 48-port 8xmGig, 40x1G, 2x25G PoE+, Network Advantage
C9200L-48PXG-2Y-E C9200L 48-p 8xmGig, 40x1G, 2x25G PoE+, Network Essentials
C9200L-48PXG-4X-A C9200L 48-port 12xmGig, 36x1G, 4x10G PoE+, Network Advantage
C9200L-48PXG-4X-E C9200L 48-p 12xmGig, 36x1G, 4x10G PoE+, Network Essentials
C9200L-48T-4G-A Catalyst 9200L 48-port data only, 4 x 1G, Network Advantage
C9200L-48T-4G-CA C9200L 48-port data, 4x1G, Network Advantage, China ONLY
C9200L-48T-4G-CE C9200L 48-port data, 4x1G, Network Essentials, China ONLY
C9200L-48T-4X-A Catalyst 9200 48-port data only, 4 x 10G ,Network Advantage
C9200L-48T-4X-CA C9200 48-port data, 4x10G ,Network Advantage, China ONLY
C9200L-48T-4X-CE C9200L 48-port data, 4x10G ,Network Essentials, China ONLY
C9200L-DNA-A-24-3Y C9200L Cisco DNA Advantage, 24-port, 3 Year Term license
C9200L-DNA-A-24-5Y C9200L Cisco DNA Advantage, 24-port, 5 Year Term license
C9200L-DNA-A-24-7Y C9200L Cisco DNA Advantage, 24-port, 7 Year Term license
C9200L-DNA-A-48-3Y C9200L Cisco DNA Advantage, 48-port, 3 Year Term license
C9200L-DNA-A-48-5Y C9200L Cisco DNA Advantage, 48-port, 5 Year Term license
C9200L-DNA-A-48-7Y C9200L Cisco DNA Advantage, 48-port, 7 Year Term license
C9200L-DNA-E-24-7Y C9200L Cisco DNA Essentials, 24-port, 7 Year Term license
C9200L-DNA-E-48-7Y C9200L Cisco DNA Essentials, 48-port, 7 Year Term license
C9200L-DNA-P-24-3Y C9200L Cisco DNA Premier, 24-Port, 3 Year Term License
C9200L-DNA-P-24-5Y C9200L Cisco DNA Premier, 24-Port, 5 Year Term License
C9200L-DNA-P-24-7Y C9200L DNA Premier, 24-Port, 7 Year Term License
C9200L-DNA-P-48-3Y C9200L Cisco DNA Premier, 48-Port, 3 Year Term License
C9200L-DNA-P-48-5Y C9200L Cisco DNA Premier, 48-Port, 5 Year Term License
C9200L-DNA-P-48-7Y C9200L Cisco DNA Premier, 48-Port, 7 Year Term License
