C2811-ADSL2-M/K9

Manufacturer Part#: Cisco C2811-ADSL2-M/K9

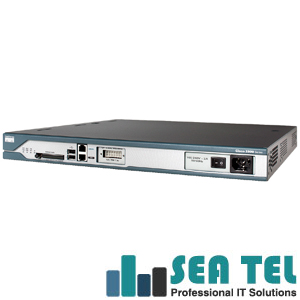

C2811-ADSL2-M/K9 Cisco 2800 Series Integrated Services Router

C2811-ADSL2-M/K9 - Cisco 2811-ADSL2-M provides significant additional value compared to prior generations of Cisco routers at similar price points by offering up to a fivefold performance improvement, up to a tenfold increase in security and voice performance, embedded service options, and dramatically increased slot performance and density while maintaining support for most of the more than 90 existing modules that are available today for the Cisco 1700, Cisco 2600, and Cisco 3700 Series.

Cisco C2811-ADSL2-M/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2800
Product Model: 2811-ADSL2-M
Product Name: 2811-ADSL2-M Integrated Services Router
Product Type: Integrated Services Router

Cisco C2811-ADSL2-M/K9 Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 2 x USB 1.1 USB
Interfaces/Ports: 1 x Console Management
Interfaces/Ports: 1 x Auxiliary Management

Cisco C2811-ADSL2-M/K9 I/O Expansions:
Number of Expansion Slots: 11
Expansion Slots: (4 Total /3 Free /1 Populated) HWIC
Expansion Slots: (2 Total) AIM
Expansion Slots: (1 Total) EVM
Expansion Slots: (1 Total) Network Module
Expansion Slots: (1 Total) CompactFlash (CF) Card
Expansion Slots: (2 Total) PVDM

Cisco C2811-ADSL2-M/K9 Management & Protocols
Management:
•Simple Network Management Protocol (SNMPv3)
•Quality of Service (QoS)
•VLAN
•Web-based management
•Cisco Router and Security Device Manager (SDM)

Cisco C2811-ADSL2-M/K9 Memory:
Standard Memory: 256MB
Maximum Memory: 1GB
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco C2811-ADSL2-M/K9 Software
Operating System:
Cisco IOS 12.3(8)T

Cisco C2811-ADSL2-M/K9 Power Description
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Power Source: Power Supply
Redundant Power Supply: Yes

Cisco C2811-ADSL2-M/K9 Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Dimensions: 3.5 Height x 17.25 Width x 16.4 Depth
Weight: 25 lb
