C2801-H-VSEC/K9

Manufacturer Part#: Cisco C2801-H-VSEC/K9

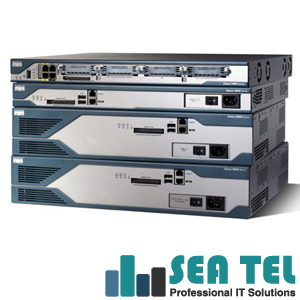

C2801-H-VSEC/K9 Cisco 2800 Series Integrated Services Router

C2801-H-VSEC/K9 - Cisco 2801 provides significant additional value compared to prior generations of Cisco Routers at similar price points by offering up to a fivefold performance improvement, up to a tenfold increase in security and voice performance, embedded service options, and dramatically increased slot performance and density while maintaining support for most of the more than 90 existing modules that are available today for the Cisco 1700, Cisco 2600, and Cisco 3700 Series.The Cisco 2801 features the ability to deliver multiple high-quality simultaneous servicesat wire speed up to multiple T1/E1/xDSL connections. The Routers offer embedded encryption acceleration and on the motherboard voice digital-signal-processor (DSP) slots; intrusion prevention system (IPS) and firewall functions; optional integrated call processing and voice mail support; high-density interfaces for a wide range of wired and wireless connectivity requirements; and sufficient performance and slot density for future network expansion requirements and advanced applications.

Cisco C2801-H-VSEC/K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 2800
Product Model: 2801
Product Name: 2801 HVSEC Bundle Router
Product Type: Integrated Services Router

Cisco C2801-H-VSEC/K9 Interfaces/Ports:
Number of Ports: 2
Fast Ethernet Port: Yes
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN
Interfaces/Ports: 1 x Console Management
Interfaces/Ports: 1 x USB 1.1
Interfaces/Ports: 1 x Auxiliary Management

Cisco C2801-H-VSEC/K9 I/O Expansions:
Number of Expansion Slots: 9
Expansion Slots: (4 Total) HWIC
Expansion Slots: (2 Total) AIM
Expansion Slots: (1 Total) CompactFlash (CF) Card
Expansion Slots: (2 Total) PVDM

Cisco C2801-H-VSEC/K9 Management & Protocols:
Management:
•SNMP v3
•QoS
•VLAN
•Cisco Router and Security Device Manager (SDM)

Cisco C2801-H-VSEC/K9 Memory:
Standard Memory: 384MB
Memory Technology: DRAM
Flash Memory: 128 MB

Cisco C2801-H-VSEC/K9 Software:
Operation System:
Cisco IOS

Cisco C2801-H-VSEC/K9 Power Description:
Input Voltage: 220V AC
Input Voltage: 110V AC
Input Voltage Range: 100V AC to 240V AC
Power Source: Power Supply

Cisco C2801-H-VSEC/K9 Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Dimensions: 1.72 Height x 17.5 Width x 16.5 Depth
Weight: 13.7 lb

Cisco C2801-H-VSEC/K9 Miscellaneous:
Additional Information:
25 User SRST License
10 User SSL VPN License
25 User SRST License
10 User SSL VPN License
