Product ID : Cisco ASR 1002 Router
Product Description
Manufacturer Part#: Cisco ASR1002

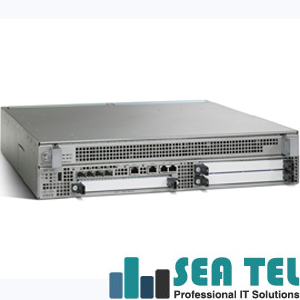

Cisco ASR1002 - Router

Cisco ASR1002 Chassis,4 built-in GE, Dual P/S,4GB DRAM

In stock and ready to ship

Cisco ASR 1002 Router in a 2-rack unit (RU) form factor comes with an integrated route and serial interface processors. It houses three shared port adapter (SPA) slots supporting single height and dual height SPAs. Configurable with either the 5 Gbps or 10 Gbps embedded services processor and four built-in gigabit Ethernet ports, it is an ideal solution for a large branch office or as a managed high-speed customer premises equipment (CPE) device to support enhanced features such as security, deep packet inspection, and firewall.

ASR1002 General
Manufacturer Cisco
Manufacturer Part # ASR1002=
Cost Central Item # 11013150
Product Description Cisco ASR 1002 - Router - desktop
Device Type Router
Enclosure Type Desktop - modular - 2U
Remote Management Protocol SNMP, Telnet, SSH
Features VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), MPLS VPN
Power AC 120/230 V ( 50/60 Hz )
Approximate Dimensions (WxDxH) 17.2 in x 21.9 in x 3.5 in

ASR1002 Specifications
GeneralDevice Type Router
Enclosure Type Desktop - modular - 2U
Connectivity Technology Wired
Remote Management Protocol SNMP, Telnet, SSH
Features VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), MPLS VPN
RAM 4 GB

ASR1002 Expansion / Connectivity
Interfaces Management :
1 x 10Base-T/100Base-TX - RJ-45
Management : 1 x console - RJ-45
Management : 1 x auxiliary - RJ-45
4 x SFP (mini-GBIC)
Expansion Slot(s) 3 (total) / 3 (free) x expansion slot
1 (total) / 1 (free) x processor board
Installed Modules Qty (Max) 0 (installed) / 4 (max)

ASR1002 Power Supplies:
Power Device Power supply - redundant
Installed Qty 2 (installed) / 2 (max)
Voltage Required AC 120/230 V ( 50/60 Hz )

ASR1002 Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 90%
