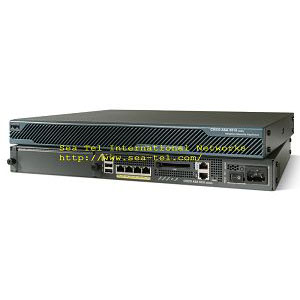

ASA5520-BUN-K9

Manufacturer Part#: Cisco ASA5520-BUN-K9
ASA5520-BUN-K9  CISCO ASA5500 SERIES FIREWALL

ASA5520-BUN-K9 - ASA 5520 Appliance with SW, HA, 4GE+1FE, 3DES/AES

Cisco ASA 5520 Adaptive Security Appliance delivers a wide range of security services with Active/Active high availability and Gigabit Ethernet connectivity for medium-sized enterprise networks, in a modular, high performance appliance. Using its four Gigabit Ethernet interfaces and support for up to 25 VLANs, businesses can easily deploy these security services into multiple zones within their network. The Cisco ASA 5520 Adaptive Security Appliance scales with businesses as their network security requirements grow, delivering solid investment protection. Businesses can extend their IPSec and SSL VPN capacity through multiple means to support a larger number of mobile workers, remote sites, and business partners. VPN capacity can be increased by taking advantage of the integrated VPN clustering and load-balancing capabilities of the Cisco ASA 5520 Adaptive Security Appliance, as well as more than doubling each platform's VPN capacity through the installation of a VPN upgrade license. The advanced application layer security and anti-x defenses provided by the Cisco ASA 5520 Adaptive Security Appliance can be extended by deploying a high performance Security Services Module. Using the optional security context capabilities of the Cisco ASA 5520 Adaptive Security Appliance, businesses can deploy up to 10 virtual firewalls within an appliance to enable compartmentalized control of security policies on a departmental level. This virtualization strengthens security and reduces overall management and support costs while consolidating multiple security devices into a single appliance.

Cisco ASA5520-BUN-K9 General Information:
Product Name: ASA 5520 VPN/Firewall
Product Type: VPN/Firewall

Cisco ASA5520-BUN-K9 Interfaces/Ports:
Number of Ports: 5
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 4 x RJ-45 1000Base-T
Interfaces/Ports: 1 x RJ-45 10/100Base-TX
Interfaces/Ports: 2 x USB USB 2.0
Interfaces/Ports: 1 x RJ-45 Console Management

Cisco ASA5520-BUN-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: ASA
Product Series: 5500

Cisco ASA5520-BUN-K9 Technical Information:
Virtualization: 750 Web VPN Peers
Virtualization: 2 Security Contexts
Virtualization: 2 Web VPN Peers
Virtualization: 750 IPSec VPN Peers
Virtualization: 150
Virtualization: 9000 Concurrent Sessions
Virtualization: 20 Security Contexts
Virtualization: 280000 Concurrent Sessions
Firewall Protection: Intrusion Prevention
Firewall Protection: Worm Scanning
Firewall Protection: Malware Protection
Firewall Protection: Antivirus
Encryption Standard: AES
Encryption Standard: 3DES
VPN Support:
IPSec/SSL VPN
VPN clustering and load balancing
IPSec/SSL VPN
VPN clustering and load balancing

Cisco ASA5520-BUN-K9 Media & Performance:
VPN Throughput: 225Mbps
Firewall Throughput: 450 Mbps

Cisco ASA5520-BUN-K9 I/O Expansions:
Number of Expansion Slots: 2
Expansion Slots: (1 Total) CompactFlash (CF) Card
Expansion Slots: (1 Total) SSM

Cisco ASA5520-BUN-K9 Management & Protocols:
Protocols: IPSec
Protocols: TCP/IP
Management:
Web-based management

Cisco ASA5520-BUN-K9 Processor & Chipset:
Processor: Intel Celeron 2GHz

Cisco ASA5520-BUN-K9 Memory:
Standard Memory: 512 MB
Memory Technology: DRAM
Flash Memory: 64 MB

Cisco ASA5520-BUN-K9 Controls/Indicators:
•MGMT indicator LEDs
•Network interface LEDs
•Power
•Status
•Active
•VPN
•Flash

ASA5520-BUN-K9 Rear Panel LEDs:
•2 x Power indicator
•Status Indicator
•Active
•VPN
•Flash
•AUX


Cisco ASA5520-BUN-K9 Power Description:
Power Consumption: 150 W Standard
Power Consumption: 190 W Maximum

Cisco ASA5520-BUN-K9 Environmental Conditions:
Temperature: 0 degrees C (32.0 degrees F) to 40 degrees C (104.0 degrees F) Operating
Temperature: -25 degrees C (-13.0 degrees F) to 70 degrees C (158.0 degrees F) Non-operating
Humidity: 5 to 95% Non-condensing Relative Humidity Non-operating
Humidity: 5 to 95% Non-condensing Relative Humidity Operating
Altitude: 0 ft to 14993.44 ft - Non-operating
Altitude: 0 ft to 9842.52 ft - Operating
Thermal Dissipation: 648 BTU/h

Cisco ASA5520-BUN-K9 Physical Characteristics:
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Form Factor: Desktop
Dimensions: 1.75 Height x 17.5 Width x 13.2 Depth
Weight: 20 lb
