AIR-LAP1131AG-P-K9

Manufacturer Part#: Cisco AIR-LAP1131AG-P-K9

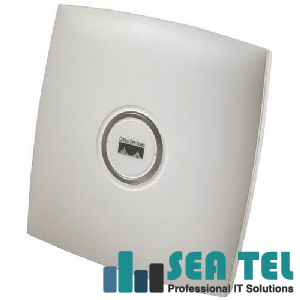

AIR-LAP1131AG-P-K9 Cisco Wireless Access Point (AP)

AIR-LAP1131AG-P-K9 - Wireless Access Point - 108Mbps - 1 x

Cisco Aironet 1131AG IEEE 802.11a/b/g Lightweight Access Point provide high-capacity, high-security, enterprise-class features in an unobtrusive, office-class design, delivering WLAN access with the lowest total cost of ownership. Two high-performing radios provide simultaneous support for 802.11a and 802.11g standards, delivering 108 Mbps data rates in the 5 and 2.4 GHz bands to distances surpassing that of previous-generation radios. For smooth migration, the Cisco Aironet 1131AG IEEE 802.11a/b/g Lightweight Access Point takes full advantage of the dual-band capabilities of today's WLAN clients, while providing full backward compatibility for legacy 802.11b clients.

Cisco AIR-LAP1131AG-P-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1100
Product Model: 1131AG
Product Name: Aironet 1131AG IEEE 802.11a/b/g Lightweight Access Point
Product Type: Wireless Access Point

Cisco AIR-LAP1131AG-P-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.472 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.82 GHz
Number of Antennas: 2
Antenna Gain: 4.5 dBi
Antenna Type: Omni-directional Antenna
Indoor Antenna Range: 400 ft
Outdoor Antenna Range: 950 ft
Channels: 3 Channel Non-overlapping IEEE 802.11b/g
Channels: 13 Channel IEEE 802.11b/g Japan (TELEC 2)
Channels: 8 Channel IEEE 802.11a Japan (TELEC 2)
Channels: 12 Channel IEEE 802.11a FCC
Channels: 19 Channel Non-overlapping IEEE 802.11a
Channels: 11 Channel IEEE 802.11b/g FCC
Wireless Transmission Speed: 108 Mbps
Transmission Speed Details: 108Mbps 2x Mode
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11a/g
Transmission Speed Details: 6Mbps IEEE 802.11a/g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 1Mbps IEEE 802.11b

Cisco AIR-LAP1131AG-P-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink

AIR-LAP1131AG-P-K9 Security Features:
Message integrity check (MIC)
MAC address authentication
RC4 encryption
Message integrity check (MIC)
MAC address authentication
RC4 encryption

Cisco AIR-LAP1131AG-P-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply

Cisco AIR-LAP1131AG-P-K9 Physical Characteristics:
Dimensions: 7.5 Height x 7.5 Width x 1.3 Depth
Weight: 1.5 lb
