Product Description

Manufacturer Part#: Cisco AIR-LAP1121G-A-K9
AIR-LAP1121G-A-K9 Cisco Wireless Access Point (AP)

AIR-LAP1121G-A-K9 Wireless Access Point - 54Mbps

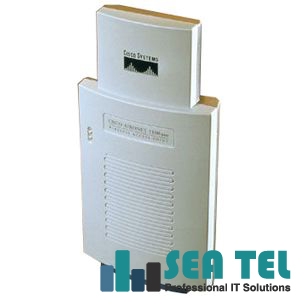

Cisco Aironet 1121G Lightweight Access Point provides a high-speed, secure, affordable, and easy-to-use wireless LAN solution that combines the freedom and flexibility of wireless networking with the features and services required in enterprise networks. The access point offers flexibility and investment protection for wireless networks. When configured with LWAPP, the Cisco Aironet 1121G Lightweight Access Point can automatically detect the best-available Cisco wireless LAN controller and download appropriate policies and configuration information with no manual intervention.
Cisco AIR-LAP1121G-A-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1100
Product Model: 1121G
Product Name: Aironet 1121G Lightweight Access Point
Product Type: Wireless Access Point
Cisco AIR-LAP1121G-A-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11b/g
ISM Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.462 GHz
Antenna Gain: 2.2 dBi
Antenna Type: Diversity Dipole Antenna
Indoor Antenna Range: 410 ft
Outdoor Antenna Range: 700 ft
Channels: 3 Channel Non-overlapping
Channels: 11 Channel Operating IEEE 802.11b/g Americas
Wireless Transmission Speed: 54 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11g
Transmission Speed Details: 6Mbps IEEE 802.11g
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 1Mbps IEEE 802.11b

•BPSK: 6 and 9 Mbps
•QPSK: 12 and 18 Mbps
•16-QAM: 24 and 36 Mbps
•64-QAM: 48 and 54 Mbps

•DBPSK: 1 Mbps
•DQPSK: 2 Mbps
•CCK: 5.5 and 11 Mbps
Cisco AIR-LAP1121G-A-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 10/100Base-TX Uplink
Cisco AIR-LAP1121G-A-K9 Management & Protocols:
SNMP Compliance: MIB I and MIB II
Quality of Service (QoS)
SNMP Compliance: MIB I and MIB II
Quality of Service (QoS)
Security Features:
Intrusion Detection System (IDS)
Message integrity check (MIC)
RC4 encryption
Intrusion Detection System (IDS)
Message integrity check (MIC)
RC4 encryption
Cisco AIR-LAP1121G-A-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 33V DC to 57V DC
Power Source: Power Supply
Cisco AIR-LAP1121G-A-K9 Physical Characteristics:
Form Factor: Wall-mountable
Form Factor: Desktop
Dimensions: 8.1 Height x 4.1 Width x 1.5 Depth
Weight: 10.5 oz
