AIR-AP1242G-E-K9

Manufacturer Part#: Cisco AIR-AP1242G-E-K9

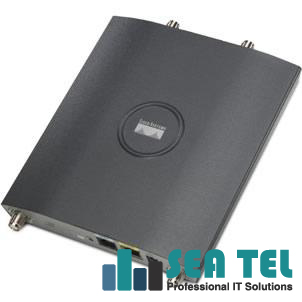

AIR-AP1242G-E-K9  Cisco Wireless Access Point (AP)

AIR-AP1242G-E-K9 Wireless Access Point - 54Mbps
In stock and Ready to Ship

Cisco Aironet 1242G Access Point provides single-band 802.11g wireless connectivity for challenging RF environments such as factories, warehouses, and large retail establishments. Connectorized antennas, a rugged metal enclosure, and a broad operating temperature range offer extended range and coverage versatility. The Cisco Aironet 1242G provides local as well as inline power, including support for IEEE 802.3af Power over Ethernet (PoE).

Cisco AIR-AP1242G-E-K9 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Line: Aironet
Product Series: 1240G
Product Model: 1242G
Product Name: Aironet 1242G Wireless Access Point
Packaged Quantity: 1
Product Type: Wireless Access Point

Cisco AIR-AP1242G-E-K9 Technical Information:
Wi-Fi Standard: IEEE 802.11b/g
ISM Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.472 GHz
Antenna Connector: Dual RP-TNC Connector
Indoor Antenna Range: 460 ft
Outdoor Antenna Range: 950 ft
Channels: 13 Channel Operating IEEE 802.11b/g ETSI
Wireless Transmission Speed: 54 Mbps
Transmission Speed Details: 54Mbps Auto-fallback IEEE 802.11g
Transmission Speed Details: 1Mbps IEEE 802.11b
Transmission Speed Details: 11Mbps Auto-fallback IEEE 802.11b
Transmission Speed Details: 6Mbps IEEE 802.11g
Modulation:
Complementary Code Keying (CCK):

•BPSK (1 Mbps)
•QPSK (2 Mbps)
•CCK (5.5 and 11 Mbps)

Orthogonal Frequency Division Multiplex (OFDM):
•BPSK (6 and 9 Mbps)
•QPSK (12 and 18 Mbps)
•16-QAM (24 and 36 Mbps)
•64-QAM (48 and 54 Mbps)
•BPSK (6 Mbps and 9 Mbps)
•QPSK (12 Mbps and 18 Mbps)
•16-QAM (24 and 36 Mbps)
•64-QAM (48 and 54 Mbps)

Cisco AIR-AP1242G-E-K9 Interfaces/Ports:
Number of Ports: 1
Fast Ethernet Port: Yes
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 1 x RJ-45 10/100Base-TX LAN

Cisco AIR-AP1242G-E-K9 Management & Protocols:
Management:

•Command Line Interface (CLI)
•Web browser management
•Simple Network Management Protocol (SNMP)
•DHCP

Security Features:
AES

Cisco AIR-AP1242G-E-K9 Power Description:
Input Voltage: 220 V AC
Input Voltage: 110 V AC
Input Voltage Range: 100V AC to 240V AC
Input Voltage Range: 36V DC to 57V DC
Power Source: Power Supply

Cisco AIR-AP1242G-E-K9 Physical Characteristics:
Form Factor: Wall-mountable
Form Factor: Desktop
Dimensions: 1.1 Height x 6.6 Width x 8.5 Depth
Weight: 2 lb
