3725MBUNDLE-30DM-U

Manufacturer Part#: Cisco 3725MBUNDLE-30DM-U

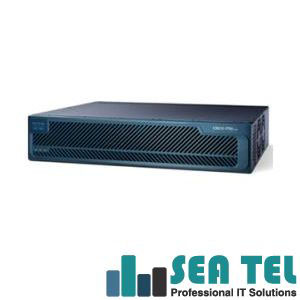

3725MBUNDLE-30DM-U Cisco 3700 Series Multiservice Access Router

3725MBUNDLE-30DM-U - Access Router - 3 x WIC, 2 x Network Module - 2 x 10/100Base-TX LAN, 1 x T1/E1 WAN

Cisco 3725 router, installed with digital modem network module and PRI interface, offer the most flexible, scalable, manageable, and high-performance dial-access solutions available in the market today.

Cisco 3725 PRI modem bundle use one-port PRI network module in combination with digital modem network modules to offer support for up to 60 remote modem users at speeds of up to 56 Kbps. Additional WICs and AIMs can be ordered to increase performance. The benefits of this bundle include ease of ordering, the ability to support remote users at the maximum connection speeds available, and the inclusion of feature-rich Cisco IOS Software.


Cisco 3725MBUNDLE-30DM-U General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Series: 3700
Product Model: 3725
Product Name: 3725 Multiservice Access Router
Product Type: Access Router

Cisco 3725MBUNDLE-30DM-U Interfaces/Ports:
Number of Ports: 3
Fast Ethernet Port: Yes
T-Carrier Port: Yes
E-Carrier Port: Yes
Interfaces/Ports: 1 x RJ-48C T1/E1 WAN
Interfaces/Ports: 1 x RJ-45 Auxiliary Management
Interfaces/Ports: 1 x RJ-45 Console Management
Interfaces/Ports: 2 x RJ-45 10/100Base-TX LAN

Cisco 3725MBUNDLE-30DM-U Media & Performance:
Connectivity Media: Twisted Pair
Forwarding/Filtering Rate: 100Kpps

Cisco 3725MBUNDLE-30DM-U I/O Expansions:
Number of Expansion Slots: 8
Expansion Slots: (3 Total) WIC
Expansion Slots: (2 Total /2 Populated) Network Module
Expansion Slots: (2 Total) AIM
Expansion Slots: (1 Total) CompactFlash (CF) Card
Modules: 1 x NM-30DM Network Module
Modules: 1 x NM-1CE1T1-PRI Network Module

Cisco 3725MBUNDLE-30DM-U Processor & Chipset:
Processor: MIPS 240MHz RISC

Cisco 3725MBUNDLE-30DM-U Memory:
Standard Memory: 256MB
Maximum Memory: 256MB
Memory Technology: SDRAM
Flash Memory: 32 MB

Cisco 3725MBUNDLE-30DM-U Software:
Operating System:
Cisco 3725 Series IOS IP BASE

Cisco 3725MBUNDLE-30DM-U Power Description:
Input Voltage: 110V AC
Input Voltage: 220V AC
Input Voltage Range: 100V AC to 240V AC
Power Source: AC Adapter
Redundant Power Supply: Yes

Cisco 3725MBUNDLE-30DM-U Physical Characteristics:
Compatible Rack Unit: 2U
Form Factor: Desktop
Form Factor: Rack-mountable
Dimensions: 3.5 Height x 17.1 Width x 14.7 Depth
Weight: 14 lb

Contact Sea Tel International Co., Limited for more information.
