Product Description

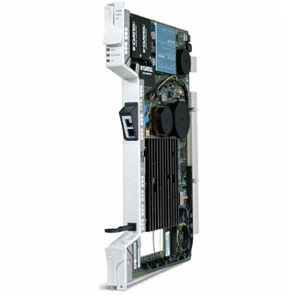

Manufacturer Part#: Cisco 15454-OC192LR1550
15454-OC192LR1550 Cisco Interface & Line Card
15454-OC192LR1550 - 1 x OC-192/STM-64 - Fiber Module
In stock & Ready to ship
Cisco 15454-OC192LR1550 General Information
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: ONS 15454 OC-192/STM-64 Line Card
Product Type: Fiber Module
Cisco 15454-OC192LR1550 Interfaces/Ports
Interfaces/Ports: 1 x OC-192/STM-64
Interfaces/Ports Details: 1 x SC Duplex Connector OC-192/STM-64
Cisco 15454-OC192LR1550 Media & Performance
Connectivity Media: Single-mode Fiber
Distance Support: 80 km Single-mode Fiber
Data Transfer Rate: 9.953Gbps OC-192/STM-64
Cisco 15454-OC192LR1550 Management & Protocols
Management:
Supported by the integrated Cisco Transport Controller craft manager
Cisco 15454-OC192LR1550 Controls/Indicators
Status Indicators:
Failure (FAIL)
Active/standby (ACT/STBY)
Signal fail (SF)
Failure (FAIL)
Active/standby (ACT/STBY)
Signal fail (SF)
Cisco 15454-OC192LR1550 Power Description
Power Consumption: 72.2 W
Cisco 15454-OC192LR1550 Environmental Conditions
Temperature: -5 degrees C (23.0 degrees F) to 55 degrees C (131.0 degrees F) Operating
Temperature: -40 degrees C (-40.0 degrees F) to 85 degrees C (185.0 degrees F) Storage
Humidity: 5% to 95% Non-condensing Operating
Humidity: 5% to 95% Non-condensing Storage
Cisco 15454-OC192LR1550 Additional Information:
Spare Product
Wavelength: 1550-nm
Networking Flexibility:
Single ring
Multiple rings
Linear ADM
Terminal
Spare Product
Wavelength: 1550-nm
Networking Flexibility:
Single ring
Multiple rings
Linear ADM
Terminal
15454-OC192LR1550 System Requirements:
Timing, communications and control (TCC) system processor (software-dependent) card: TCC+, TCC2
Cross-connect card: XC-10G
Shelf assembly: ANSI or HD shelf assembly with FTA3 version fan tray assembly
Cisco ONS 15454 system software: Release 3.1.0 or greater
Slot compatibility: 5, 6, 12, 13
Timing, communications and control (TCC) system processor (software-dependent) card: TCC+, TCC2
Cross-connect card: XC-10G
Shelf assembly: ANSI or HD shelf assembly with FTA3 version fan tray assembly
Cisco ONS 15454 system software: Release 3.1.0 or greater
Slot compatibility: 5, 6, 12, 13
15454-OC192LR1550 Compatibility:
Cisco ONS 15454 MSPP
Certifications & Standards:
EMC Emissions (Radiated, conducted):
ICES-003
GR-1089-CORE
47CFR15
VCCI V-3/2000.04
CISPR24
EN300-386-TC
EN50081-1
EN55022
AS/NZS3548, Amendment 1 + 2 1995
EMC Immunity:
GR-1089-CORE
ISPR24
EN50082-2
EN300-386-TC
EN55024
Safety:
CAN/CSA-C22.2 No. 60950-00 Third Ed., 12/1/2002
R-1089-CORE
GR-63-CORE
TS001
15454-OC192LR1550 Environmental:
GR-63-CORE
AT&T Network Equipment Design Specifications (NEDS)
ETS 300-019-2-1 (Class 1.1)
Structural Dynamics:
GR-63-CORE
AT&T NEDS
ETS 300-019 (Class 3.1E) (Note 2)
15454-OC192LR1550 Power and Grounding:
SBC (TP76200MP)
ETS 300-132-1 (DC power)
ETS 300-253 (grounding)
15454-OC192LR1550 Optical:
GR-253-CORE
G.692
Quality:
TR-NWT-000332, Issue 4, Method 1 calculation for 20-year mean time between failure (MTBF)
Contact Sea Tel International Co., Limited for more information.
