Manufacturer Part#: Cisco 15454-OC192L-1-31.1

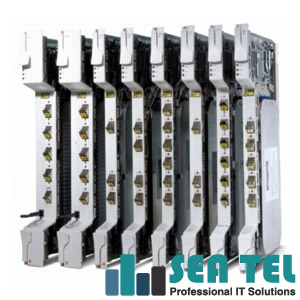

15454-OC192L-1-31.1 Interface & Line Card
15454-OC192L-1-31.1 - 1 x OC-192/STM-64 - Fiber Module
Cisco ONS 15454 SONET Multiservice Provisioning Platform (MSPP) support OC-192/STM-64 interface card, allowing users to build cost-effective networks by matching the appropriate interface to the requirements of the network application.
Cisco 15454-OC192L-1-31.1 General Information:
Manufacturer: Cisco Systems, Inc
Brand Name: Cisco
Product Name: ONS 15454 OC-192/STM 64-Line Card
Product Type: Fiber Module
Cisco 15454-OC192L-1-31.1 Interfaces/Ports:
Interfaces/Ports Details: 1 x SC Duplex Connector OC-192/STM-64
Cisco 15454-OC192L-1-31.1 Media & Performance:
Connectivity Media: Single-mode Fiber
Distance Support: 60 km Single-mode Fiber
Data Transfer Rate: 9.953Gbps OC-192/STM-64
Cisco 15454-OC192L-1-31.1 Management & Protocols:
Management:
Supported by the integrated Cisco Transport Controller craft manager
Cisco 15454-OC192L-1-31.1 Controls/Indicators:
Status Indicators:
Failure (FAIL)
Active/standby (ACT/STBY)
Signal fail (SF)
Failure (FAIL)
Active/standby (ACT/STBY)
Signal fail (SF)
Cisco 15454-OC192L-1-31.1 Power Description:
Power Consumption: 52 W Maximum
Cisco 15454-OC192L-1-31.1 Environmental Conditions:
Temperature: -5 degrees C (23.0 degrees F) to 55 degrees C (131.0 degrees F) Operating
Temperature: -40 degrees C (-40.0 degrees F) to 85 degrees C (185.0 degrees F) Storage
Humidity: 5% to 95% Non-condensing Operating
Humidity: 5% to 95% Non-condensing Storage
Cisco 15454-OC192L-1-31.1 Wavelength: 1531.12 nm
15454-OC192L-1-31.1 Networking Flexibility:
15454-OC192L-1-31.1 System Requirements:
Timing, communications and control (TCC) system processor (software-dependent) card: TCC+, TCC2
Cross-connect card: XC-10G
Shelf assembly: ANSI or HD shelf assembly with FTA3 version fan tray assembly
Slot compatibility: 5, 6, 12, 13
Timing, communications and control (TCC) system processor (software-dependent) card: TCC+, TCC2
Cross-connect card: XC-10G
Shelf assembly: ANSI or HD shelf assembly with FTA3 version fan tray assembly
Slot compatibility: 5, 6, 12, 13
15454-OC192L-1-31.1 Compatibility:
Cisco ONS 15454 MSPP
15454-OC192L-1-31.1 Certifications & Standards:
EMC Emissions (Radiated, conducted):
•ICES-003
•GR-1089-CORE
•47CFR15
•VCCI V-3/2000.04
•CISPR24
•EN300-386-TC
•EN50081-1
•EN55022
•AS/NZS3548, Amendment 1 + 2 1995
15454-OC192L-1-31.1 EMC Immunity:
•GR-1089-CORE
•ISPR24
•EN50082-2
•EN300-386-TC
•EN55024
15454-OC192L-1-31.1 Safety:
•CAN/CSA-C22.2 No. 60950-00 Third Ed., 12/1/2002
•R-1089-CORE
•GR-63-CORE
•TS001
15454-OC192L-1-31.1 Environmental:
•GR-63-CORE
•AT&T Network Equipment Design Specifications (NEDS)
•ETS 300-019-2-1 (Class 1.1)
15454-OC192L-1-31.1 Structural Dynamics:
•GR-63-CORE
•AT&T NEDS
•ETS 300-019 (Class 3.1E) (Note 2)
15454-OC192L-1-31.1 Power and Grounding:
•SBC (TP76200MP)
•ETS 300-132-1 (DC power)
•ETS 300-253 (grounding)
15454-OC192L-1-31.1 Optical:
•GR-253-CORE
•G.692
15454-OC192L-1-31.1 Quality:
•TR-NWT-000332, Issue 4, Method 1 calculation for 20-year mean time between failure (MTBF)
Cisco 15454-OC192L-1-31.1 Original Manufacturer Warranty:
Standard Warranty: 90 Day Limited
